Fruits Basket.2

■ Product
This is a control board designed for use in FGC controllers.
It comes pre-installed with GP2040-CE and is compatible with Brook mounting hole positions.
If you need four M3 spacers, please select the option when ordering.

■ Supported Platforms
PC / Switch 2 / PS5 (when used with a compatible converter)

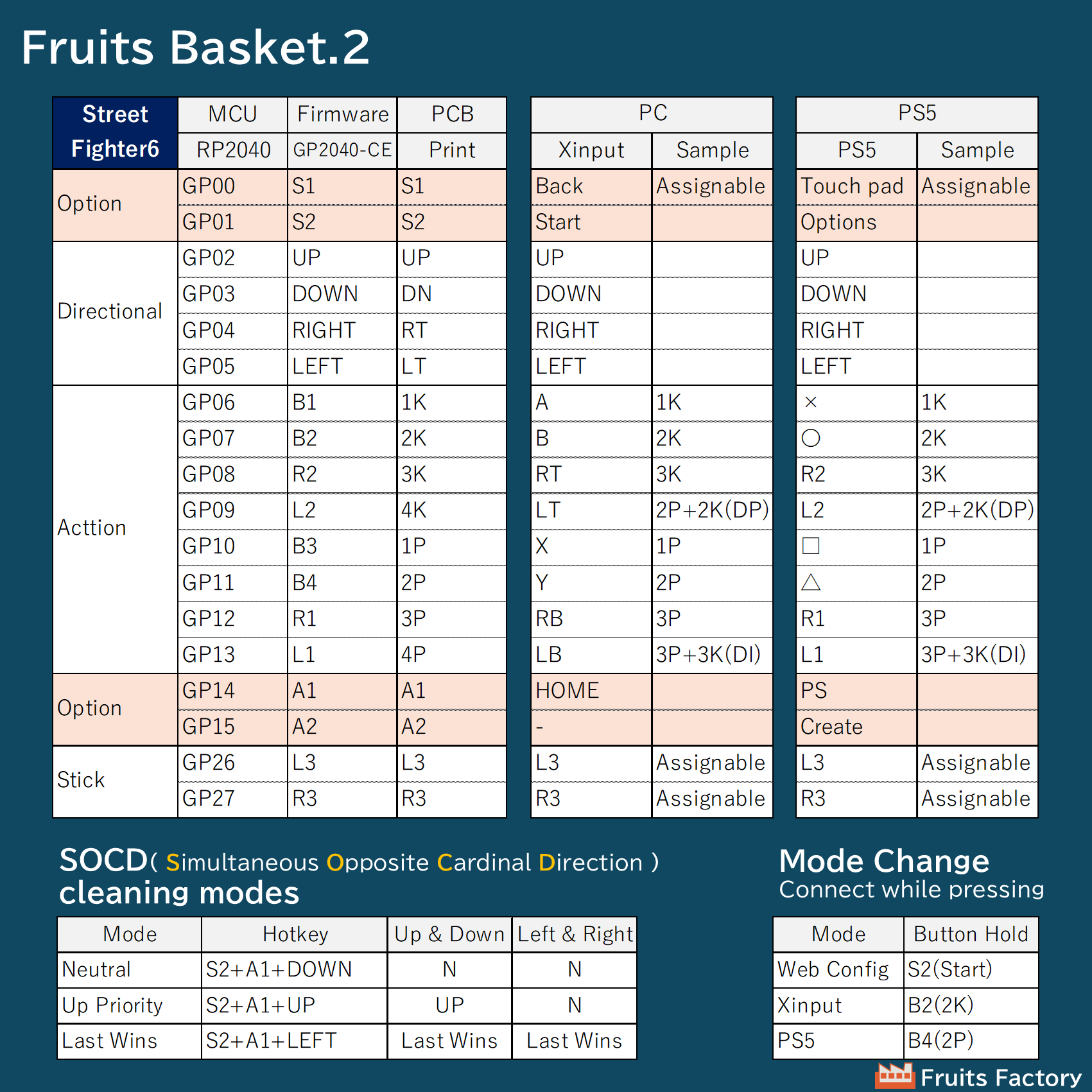

■ Mode Switching
[PC ⇒ 2K] [PS5 ⇒ 2P] [Switch2 ⇒ 1K]
Connect the board while holding the corresponding button to switch modes.
The selected mode is saved.
For PS5, press the PS button after connecting.

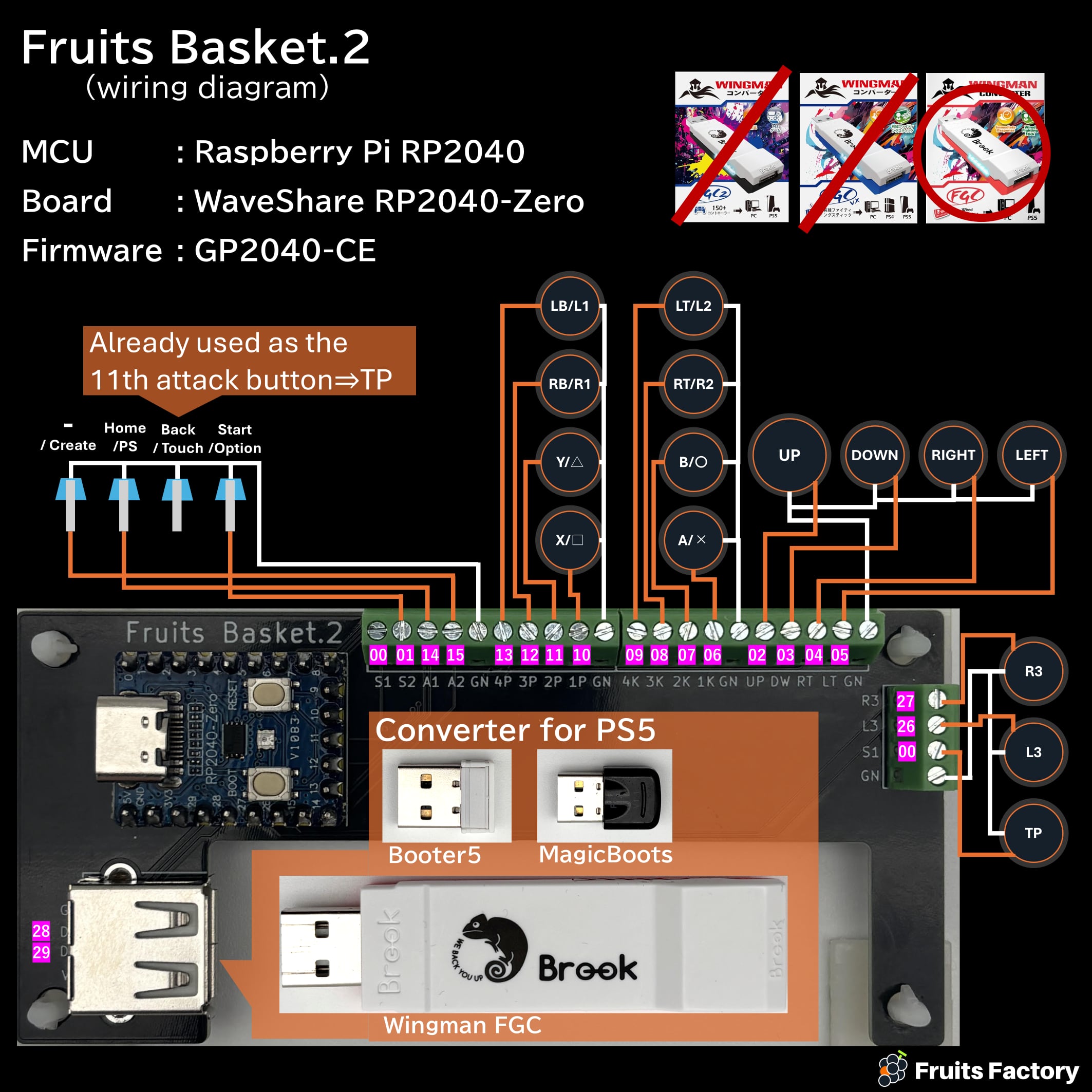

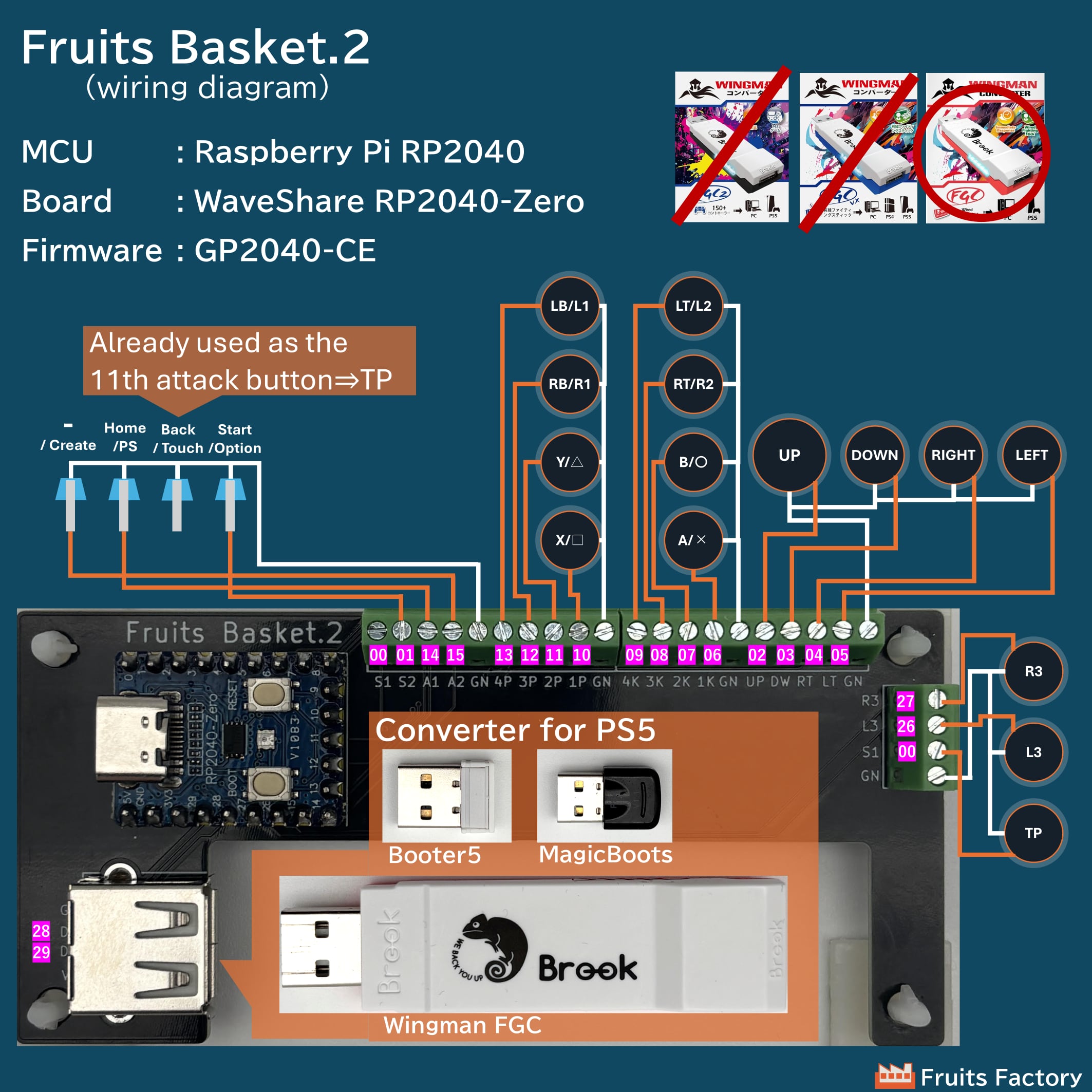

■ Fruits Basket.2
Fruits Basket.2 is an RP2040 breakout board developed by Fruits Factory (Japan).
It functions as an expanded RP2040-Zero board with GP2040-CE installed.
It simplifies wiring and includes a USB pass-through port for PS5-compatible converters.

■ Waveshare RP2040-Zero
A microcontroller board manufactured by Waveshare (Shenzhen, China), equipped with the RP2040.

■ Raspberry Pi RP2040
A microcontroller developed by the Raspberry Pi Foundation (UK).
The Raspberry Pi Pico is the most well-known model in this series.

■ GP2040-CE
A multi-platform gamepad firmware for RP2040, developed by the Open Stick Community (Canada) and hosted on GitHub.
It is widely used in many commercial and custom controllers, known for its rich features and low latency.

■ Official Manual
https://gp2040-ce.info/
